Plot traveltime residual distribution

By conparing the observed and synthetic traveltimes, we can plot the histogram of traveltime residuals before and after the inversion.

First, we load necessary Python modules


import sys
sys.path.append('../utils')
import functions_for_data as ffd

import numpy as np
import matplotlib.pyplot as plt

import os
try:
    os.mkdir('img')
except:
    pass

1. Read file

We first the DATA files.


# synthetic and observational traveltime files in the initial and final models

file_init_syn = "OUTPUT_FILES/src_rec_file_inv_0000_reloc_0000.dat"         # synthetic traveltime in the initial model
file_init_obs = "input_files/src_rec_file.dat"                              # observational traveltime in the initial model

file_final_syn = "OUTPUT_FILES/src_rec_file_inv_0009_reloc_0009.dat"        # synthetic traveltime in the final model
file_final_obs = "OUTPUT_FILES/src_rec_file_inv_0009_reloc_0009_obs.dat"    # observational traveltime in the final model

# %%
ev, st = ffd.read_src_rec_file(file_init_syn)
time_init_syn = ffd.data_dis_time(ev, st)[1]    # synthetic traveltime in the initial model

ev, st = ffd.read_src_rec_file(file_init_obs)
time_init_obs = ffd.data_dis_time(ev, st)[1]    # observational traveltime in the initial model

ev, st = ffd.read_src_rec_file(file_final_syn)
time_final_syn = ffd.data_dis_time(ev, st)[1]    # synthetic traveltime in the final model

ev, st = ffd.read_src_rec_file(file_final_obs)
time_final_obs = ffd.data_dis_time(ev, st)[1]    # observational traveltime in the final model

2. Plot data residuals


fig = plt.figure(figsize=(8,8))
ax = fig.add_subplot(111)

range_l = -1.5
range_r = 1.5
Nbar = 20

bins=np.linspace(range_l,range_r,Nbar)
error_init = time_init_syn - time_init_obs
error_final = time_final_syn - time_final_obs

tag1 = "initial mode"
tag2 = "final mode"

hist_init,  _, _ = ax.hist(error_init,bins=bins,histtype='step', edgecolor = "red", linewidth = 2,
        label = "%s: std = %5.3f s, mean = %5.3f s"%(tag1,np.std(error_init),np.mean(error_init)))

hist_final, _, _ = ax.hist(error_final,bins=bins,alpha = 0.5, color = "blue",
        label = "%s: std = %5.3f s, mean = %5.3f s"%(tag2,np.std(error_final),np.mean(error_final)))

print("residual for ",tag1," model is: ","mean: ",np.mean(error_init),"sd: ",np.std(error_init))
print("residual for ",tag2," model is: ","mean: ",np.mean(error_final),"sd: ",np.std(error_final))
ax.legend(fontsize=14)

ax.set_xlim(range_l - abs(range_l)*0.1,range_r + abs(range_r)*0.1)
ax.set_ylim(0,1.3*max(max(hist_init),max(hist_final)))

ax.tick_params(axis='x',labelsize=18)
ax.tick_params(axis='y',labelsize=18)
ax.set_ylabel('Count of data',fontsize=18)
ax.set_xlabel('Traveltime residuals (s)',fontsize=18)
ax.set_title("$t_{syn} - t_{obs}$",fontsize=18)
ax.grid()

plt.savefig("img/6_data_residual.png",dpi=300, bbox_inches='tight', edgecolor='w', facecolor='w' )
plt.show()

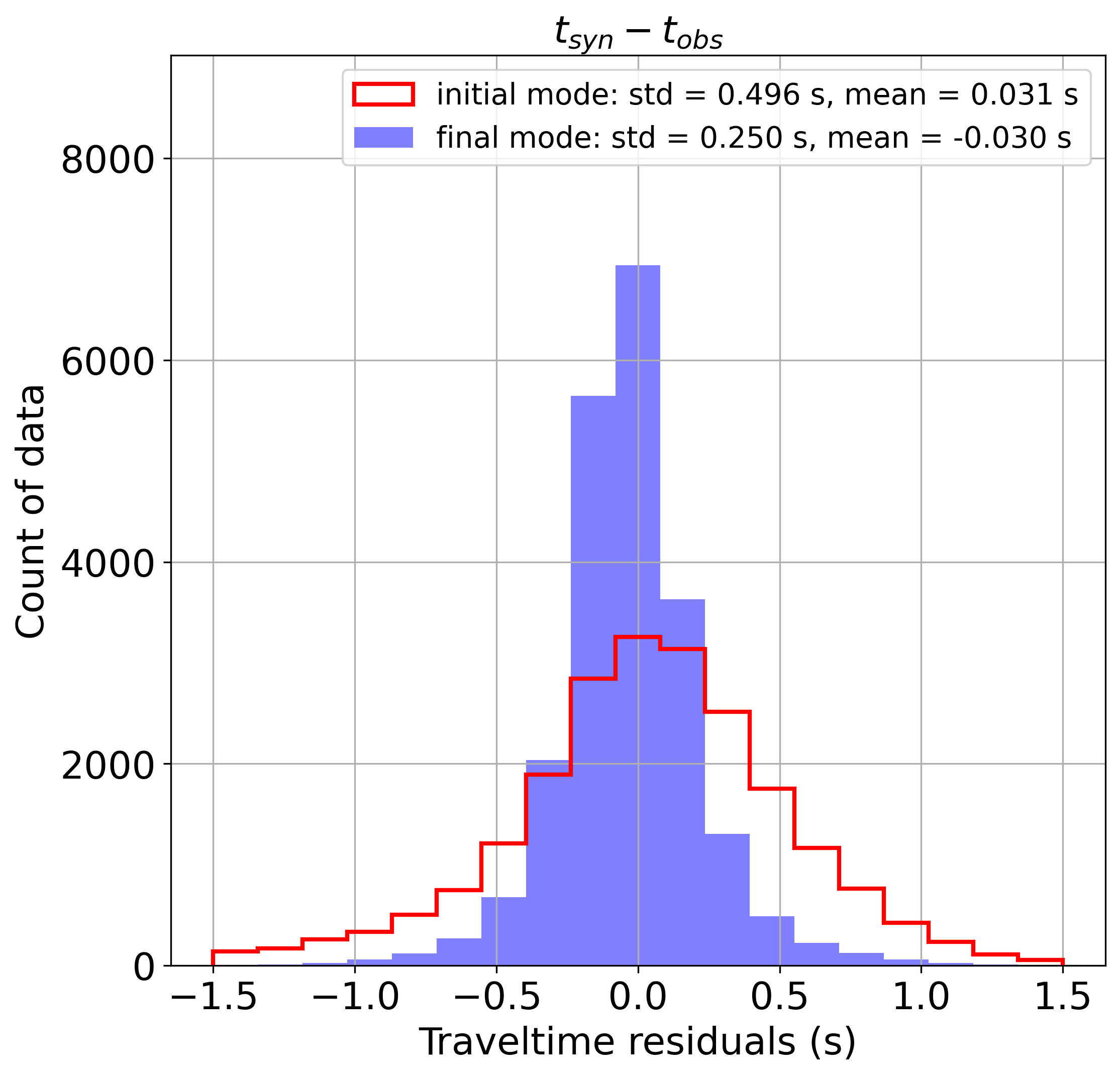

The initial data residuals are denoted by red lines, while the final data residuals are represented by blue bars.

The standard deviation decreases from 0.496 s to 0.250 s after inversion, indicating improved data fitting.
