Result visualization

Make sure the Python module Pygmt is loaded.

This part plot the output files for result visualization. Users can directly run the following codes to plot the results automatically.


python plot_output.py

Figures are output as

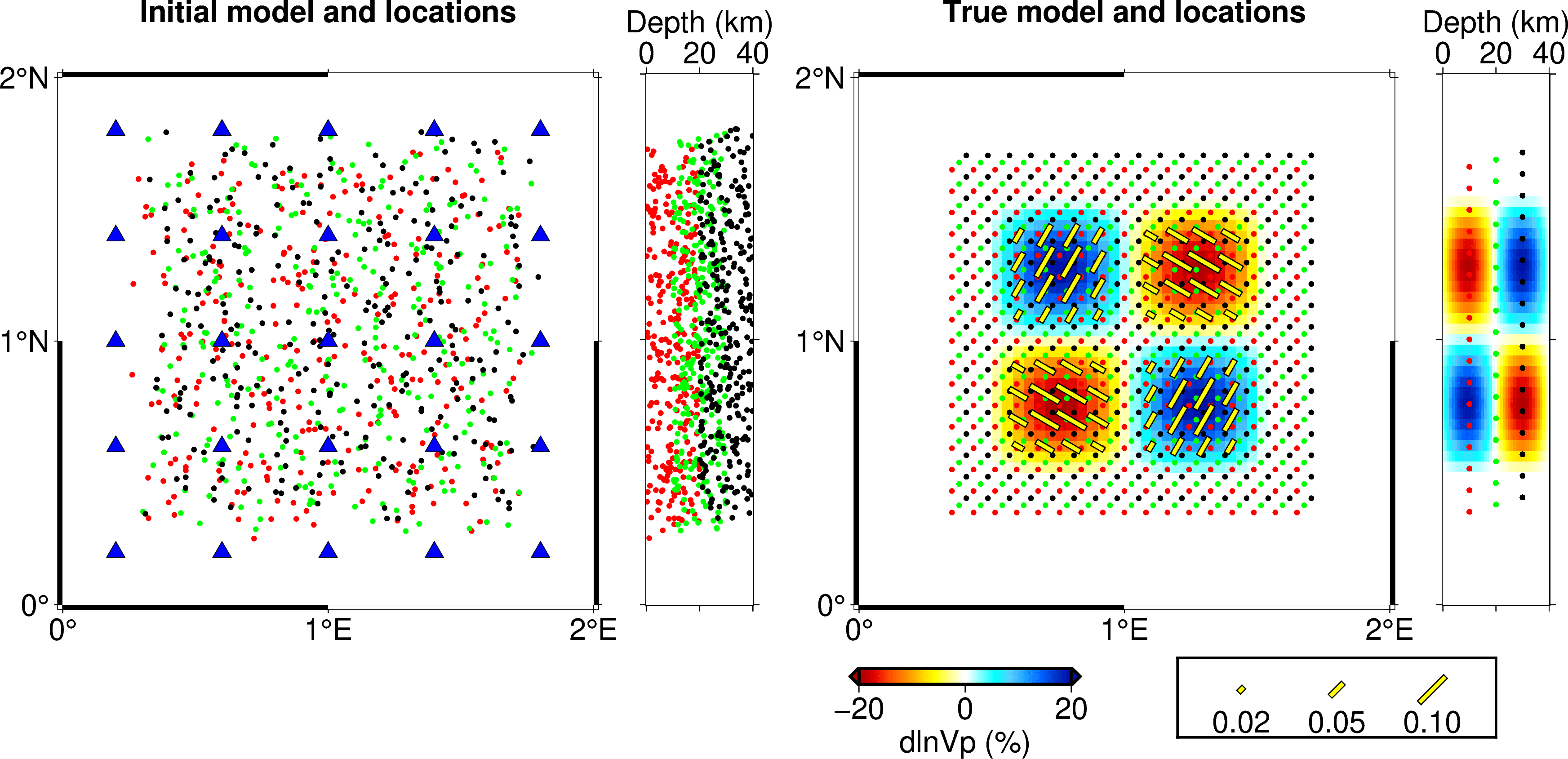

img/model_setting.png for initial and true earthquake locations (dots), station location (triangles), velocity perturbations of the initial and true models, and azimuthal anisotropy (yellow bar).

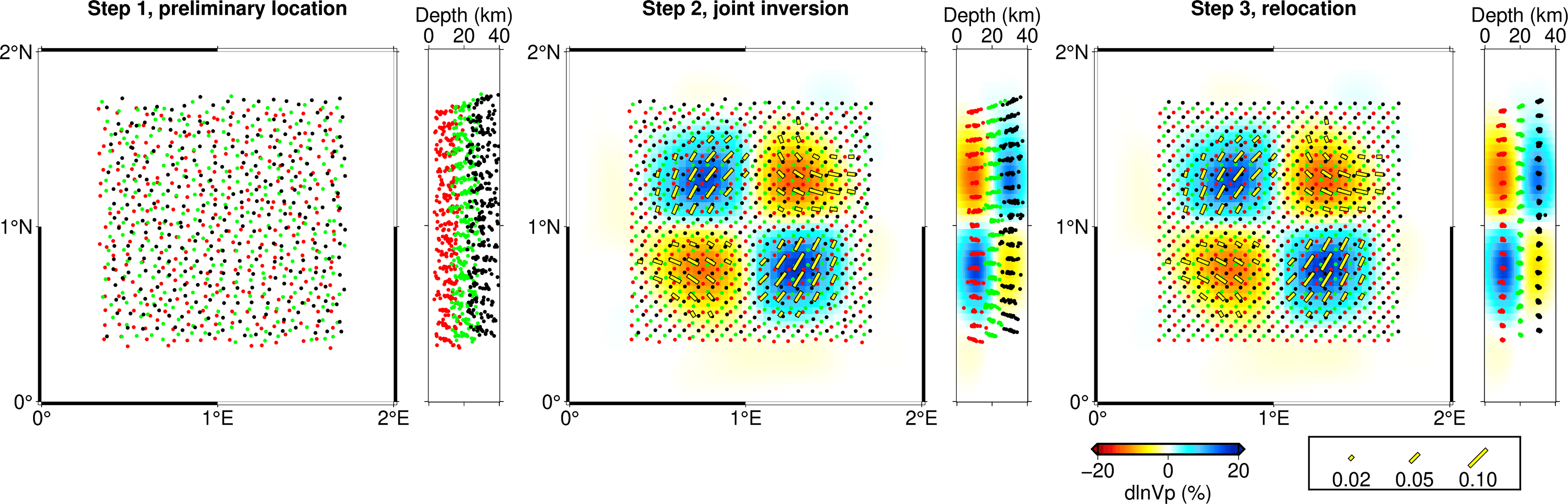

img/model_joint.png for the updated model perturbations and relocated earthquakes after three steps.

Here we demonstrate the plotting script step-by-step

1. Load necessary Python modules


import pygmt
import os
from pytomoatt.model import ATTModel
from pytomoatt.data import ATTData
from pytomoatt.src_rec import SrcRec
import numpy as np

2. Read the initial model and the checkerboard model


Ngrid = [61,61,61]
data_file = '2_models/model_init_N%d_%d_%d.h5'%(Ngrid[0],Ngrid[1],Ngrid[2])
par_file = '3_input_params/input_params_signal.yaml'
model = ATTModel.read(data_file, par_file)
initial_model = model.to_xarray()

data_file = '2_models/model_ckb_N%d_%d_%d.h5'%(Ngrid[0],Ngrid[1],Ngrid[2])
model = ATTModel.read(data_file, par_file)
ckb_model = model.to_xarray()

3. Slice profiles

Choose a horizontal profile at 10 km depth and a vertical profile from (1.25, 0) to (1.25, 2) in longitude and latitude.


depth = 10.0
vel_init = initial_model.interp_dep(depth, field='vel')
vel_ckb = ckb_model.interp_dep(depth, field='vel')

start = [1.25,0]; end = [1.25,2]
vel_init_sec = initial_model.interp_sec(start, end, field='vel', val = 1)
vel_ckb_sec = ckb_model.interp_sec(start, end, field='vel', val = 1)

4. Generate fast velocity direction arrows for the checkboard model


samp_interval = 3   # control the density of fast velocity direction arrows
length = 7
width = 0.1
ani_thd = 0.02  # arrows with magnitude smaller ani_thd is ignored

ani_ckb_phi = ckb_model.interp_dep(depth, field='phi', samp_interval=samp_interval)
ani_ckb_epsilon = ckb_model.interp_dep(depth, field='epsilon', samp_interval=samp_interval)
ani_ckb = np.hstack([ani_ckb_phi, ani_ckb_epsilon[:,2].reshape(-1, 1)*length, np.ones((ani_ckb_epsilon.shape[0],1))*width])   # lon, lat, angle, length, width
idx = np.where(ani_ckb_epsilon[:,2] > ani_thd)
ani_ckb = ani_ckb[idx[0],:]

The magnitude smaller 0.02 are ignored by


ani_thd = 0.02  # arrows with magnitude smaller ani_thd is ignored

5. Read true and initial earthquakes and stations


sr = SrcRec.read('1_src_rec_files/src_rec_config.dat')
station = sr.receivers[['stlo','stla','stel']].values.T
true_loc = sr.sources[['evlo','evla','evdp']].values.T
earthquake = true_loc

sr = SrcRec.read('OUTPUT_FILES/OUTPUT_FILES_signal/src_rec_file_forward_errloc.dat')
init_loc = sr.sources[['evlo','evla','evdp']].values.T

# categorize earthquakes
ev_idx1 = []
ev_idx2 = []
ev_idx3 = []
for i in range(earthquake.shape[1]):
    dep = earthquake[2,i]
    if dep < 15:
        ev_idx1.append(i)
    elif dep < 25:
        ev_idx2.append(i)
    elif dep < 35:
        ev_idx3.append(i)

6. Plot initial and true earthquake locations


fig = pygmt.Figure()

region = [0,2,0,2]
frame  = ["xa1","ya1"]
projection = "M10c"
spacing = 0.04

vel_range = 20

# -------------- initial model and earthquake location --------------
fig.basemap(region=region, frame=["xa1","ya1","+tInitial model and locations"], projection=projection)
# velocity perturbation
pygmt.makecpt(cmap="../utils/svel13_chen.cpt", series=[-vel_range, vel_range], background=True, reverse=False)
x = vel_init[:,0]; y = vel_init[:,1]; value = (vel_init[:,2] - vel_init[:,2])/vel_init[:,2] * 100
grid = pygmt.surface(x=x, y=y, z=value, spacing=spacing,region=region)
fig.grdimage(grid = grid)
# earthquakes
fig.plot(x = init_loc[0,ev_idx1], y = init_loc[1,ev_idx1], style = "c0.1c", fill = "red")
fig.plot(x = init_loc[0,ev_idx2], y = init_loc[1,ev_idx2], style = "c0.1c", fill = "green")
fig.plot(x = init_loc[0,ev_idx3], y = init_loc[1,ev_idx3], style = "c0.1c", fill = "black")

# stations
fig.plot(x = station[0,:], y = station[1,:], style = "t0.4c", fill = "blue", pen = "black", label = "Station")

# # anisotropic arrow
# fig.plot(ani_ckb, style='j', fill='yellow1', pen='0.5p,black')

fig.shift_origin(xshift=11)

fig.basemap(region=[0,40,0,2], frame=["xa20+lDepth (km)","ya1","Nswe"], projection="X2c/10c")
x = vel_init_sec[:,3]; y = vel_init_sec[:,1]; value = (vel_init_sec[:,4] - vel_init_sec[:,4])/vel_init_sec[:,4] * 100
grid = pygmt.surface(x=x, y=y, z=value, spacing="1/0.04",region=[0,40,0,2])
fig.grdimage(grid = grid)

# earthquakes
fig.plot(x = init_loc[2,ev_idx1], y = init_loc[1,ev_idx1], style = "c0.1c", fill = "red")
fig.plot(x = init_loc[2,ev_idx2], y = init_loc[1,ev_idx2], style = "c0.1c", fill = "green")
fig.plot(x = init_loc[2,ev_idx3], y = init_loc[1,ev_idx3], style = "c0.1c", fill = "black")


fig.shift_origin(xshift=4)


# -------------- true model and earthquake location --------------
fig.basemap(region=region, frame=["xa1","ya1","+tTrue model and locations"], projection=projection)
# velocity perturbation
pygmt.makecpt(cmap="../utils/svel13_chen.cpt", series=[-vel_range, vel_range], background=True, reverse=False)
x = vel_ckb[:,0]; y = vel_ckb[:,1]; value = (vel_ckb[:,2] - vel_init[:,2])/vel_init[:,2] * 100
grid = pygmt.surface(x=x, y=y, z=value, spacing=spacing,region=region)
fig.grdimage(grid = grid)
# earthquakes
fig.plot(x = true_loc[0,ev_idx1], y = true_loc[1,ev_idx1], style = "c0.1c", fill = "red")
fig.plot(x = true_loc[0,ev_idx2], y = true_loc[1,ev_idx2], style = "c0.1c", fill = "green")
fig.plot(x = true_loc[0,ev_idx3], y = true_loc[1,ev_idx3], style = "c0.1c", fill = "black")

# stations
# fig.plot(x = loc_st[0,:], y = loc_st[1,:], style = "t0.4c", fill = "blue", pen = "black", label = "Station")

# anisotropic arrow
fig.plot(ani_ckb, style='j', fill='yellow1', pen='0.5p,black')

fig.shift_origin(xshift=11)

fig.basemap(region=[0,40,0,2], frame=["xa20+lDepth (km)","ya1","Nswe"], projection="X2c/10c")
x = vel_ckb_sec[:,3]; y = vel_ckb_sec[:,1]; value = (vel_ckb_sec[:,4] - vel_init_sec[:,4])/vel_init_sec[:,4] * 100
grid = pygmt.surface(x=x, y=y, z=value, spacing="1/0.04",region=[0,40,0,2])
fig.grdimage(grid = grid)

# earthquakes
fig.plot(x = true_loc[2,ev_idx1], y = true_loc[1,ev_idx1], style = "c0.1c", fill = "red")
fig.plot(x = true_loc[2,ev_idx2], y = true_loc[1,ev_idx2], style = "c0.1c", fill = "green")
fig.plot(x = true_loc[2,ev_idx3], y = true_loc[1,ev_idx3], style = "c0.1c", fill = "black")


# ------------------- colorbar -------------------
fig.shift_origin(xshift=-11, yshift=-1.5)
fig.colorbar(frame = ["a%f"%(vel_range),"x+ldlnVp (%)"], position="+e+w4c/0.3c+h")

fig.shift_origin(xshift=6, yshift=-1)
fig.basemap(region=[0,1,0,1], frame=["wesn"], projection="X6c/1.5c")
ani = [
    [0.2, 0.6, 45, 0.02*length, width],    # lon, lat, phi, epsilon, size
    [0.5, 0.6, 45, 0.05*length, width],
    [0.8, 0.6, 45, 0.10*length, width],
    ]
fig.plot(ani, style='j', fill='yellow1', pen='0.5p,black')
fig.text(text=["0.02", "0.05", "0.10"], x=[0.2,0.5,0.8], y=[0.2]*3, font="16p,Helvetica", justify="CM")
fig.shift_origin(xshift= 11, yshift=2.5)

fig.show()
fig.savefig('img/model_setting.png', dpi=300)

7. Plot output earthquake locations and model perturbations.

Similarly, we can plot the earthquake locations and model perturbations after the three steps.


fig = pygmt.Figure()

region = [0,2,0,2]
projection = "M10c"
spacing = 0.04

vel_range = 20

tag_list = ["joint_step1", "joint_step2", "joint_step3"]

for itag, tag in enumerate(tag_list):

    if (tag == "joint_step1"):
        # model
        x = vel_init[:,0]; y = vel_init[:,1]; value = (vel_init[:,2] - vel_init[:,2])/vel_init[:,2] * 100
        x_sec = vel_init_sec[:,3]; y_sec = vel_init_sec[:,1]; value_sec = (vel_init_sec[:,4] - vel_init_sec[:,4])/vel_init_sec[:,4] * 100

        # location
        sr = SrcRec.read('OUTPUT_FILES/OUTPUT_FILES_%s/src_rec_file_reloc_0050.dat'%(tag))
        re_loc = sr.sources[['evlo','evla','evdp']].values.T

        frame  = ["xa1","ya1","+tStep %d, preliminary location"%(itag+1)]
    elif (tag == "joint_step2"):
        # model
        data_file = "OUTPUT_FILES/OUTPUT_FILES_%s/final_model.h5"%(tag)
        model = ATTModel.read(data_file, par_file)
        inv_model = model.to_xarray()
        vel_inv = inv_model.interp_dep(depth, field='vel') # lon = [:,0], lat = [:,1], vel = [:,2]
        x = vel_inv[:,0]; y = vel_inv[:,1]; value = (vel_inv[:,2] - vel_init[:,2])/vel_init[:,2] * 100
        vel_inv_sec = inv_model.interp_sec(start, end, field='vel', val = 1)
        x_sec = vel_inv_sec[:,3]; y_sec = vel_inv_sec[:,1]; value_sec = (vel_inv_sec[:,4] - vel_init_sec[:,4])/vel_init_sec[:,4] * 100

        ani_inv_phi = inv_model.interp_dep(depth, field='phi', samp_interval=samp_interval)
        ani_inv_epsilon = inv_model.interp_dep(depth, field='epsilon', samp_interval=samp_interval)
        ani_inv = np.hstack([ani_inv_phi, ani_inv_epsilon[:,2].reshape(-1, 1)*length, np.ones((ani_inv_epsilon.shape[0],1))*width])   # lon, lat, angle, length, width
        idx = np.where(ani_inv_epsilon[:,2] > ani_thd)
        ani = ani_inv[idx[0],:]

        # location
        sr = SrcRec.read('OUTPUT_FILES/OUTPUT_FILES_%s/src_rec_file_inv_0039_reloc_0039.dat'%(tag))
        re_loc = sr.sources[['evlo','evla','evdp']].values.T

        frame  = ["xa1","ya1","+tStep %d, joint inversion"%(itag+1)]
    elif (tag == "joint_step3"):

        # model
        x = vel_inv[:,0]; y = vel_inv[:,1]; value = (vel_inv[:,2] - vel_init[:,2])/vel_init[:,2] * 100
        x_sec = vel_inv_sec[:,3]; y_sec = vel_inv_sec[:,1]; value_sec = (vel_inv_sec[:,4] - vel_init_sec[:,4])/vel_init_sec[:,4] * 100
        ani = ani_inv[idx[0],:]

        # location
        sr = SrcRec.read('OUTPUT_FILES/OUTPUT_FILES_%s/src_rec_file_reloc_0100.dat'%(tag))
        re_loc = sr.sources[['evlo','evla','evdp']].values.T

        frame  = ["xa1","ya1","+tStep %d, relocation"%(itag+1)]

    # plot the inversion result


    # -------------- inversion model --------------
    fig.basemap(region=region, frame=frame, projection=projection)
    # velocity perturbation
    pygmt.makecpt(cmap="../utils/svel13_chen.cpt", series=[-vel_range, vel_range], background=True, reverse=False)
    grid = pygmt.surface(x=x, y=y, z=value, spacing=spacing,region=region)
    fig.grdimage(grid = grid)
    # earthquakes
    fig.plot(x = re_loc[0,ev_idx1], y = re_loc[1,ev_idx1], style = "c0.1c", fill = "red")
    fig.plot(x = re_loc[0,ev_idx2], y = re_loc[1,ev_idx2], style = "c0.1c", fill = "green")
    fig.plot(x = re_loc[0,ev_idx3], y = re_loc[1,ev_idx3], style = "c0.1c", fill = "black")

    # stations
    # fig.plot(x = loc_st[0,:], y = loc_st[1,:], style = "t0.4c", fill = "blue", pen = "black", label = "Station")

    # anisotropic arrow
    if (tag == "joint_step2" or tag == "joint_step3"):
        fig.plot(ani, style='j', fill='yellow1', pen='0.5p,black')

    fig.shift_origin(xshift=11)

    fig.basemap(region=[0,40,0,2], frame=["xa20+lDepth (km)","ya1","Nswe"], projection="X2c/10c")
    grid = pygmt.surface(x=x_sec, y=y_sec, z=value_sec, spacing="1/0.04",region=[0,40,0,2])
    fig.grdimage(grid = grid)

    # earthquakes
    fig.plot(x = re_loc[2,ev_idx1], y = re_loc[1,ev_idx1], style = "c0.1c", fill = "red")
    fig.plot(x = re_loc[2,ev_idx2], y = re_loc[1,ev_idx2], style = "c0.1c", fill = "green")
    fig.plot(x = re_loc[2,ev_idx3], y = re_loc[1,ev_idx3], style = "c0.1c", fill = "black")

    fig.shift_origin(xshift=4)

# ------------------- colorbar -------------------
fig.shift_origin(xshift=-4)

fig.shift_origin(xshift=-11, yshift=-1.5)
fig.colorbar(frame = ["a%f"%(vel_range),"x+ldlnVp (%)"], position="+e+w4c/0.3c+h")

fig.shift_origin(xshift=6, yshift=-1)
fig.basemap(region=[0,1,0,1], frame=["wesn"], projection="X6c/1.5c")
ani = [
    [0.2, 0.6, 45, 0.02*length, width],    # lon, lat, phi, epsilon, size
    [0.5, 0.6, 45, 0.05*length, width],
    [0.8, 0.6, 45, 0.10*length, width],
    ]
fig.plot(ani, style='j', fill='yellow1', pen='0.5p,black')
fig.text(text=["0.02", "0.05", "0.10"], x=[0.2,0.5,0.8], y=[0.2]*3, font="16p,Helvetica", justify="CM")
fig.shift_origin(xshift= 11, yshift=2.5)


fig.show()
fig.savefig('img/model_joint.png', dpi=300)
