Result visualization

Make sure the Python module Pygmt  is loaded.

This part plot the output files for result visualization. Users can directly run the following codes to plot the results automatically.

python plot_output.py

Figures are output as img/imaging_result.png img

Here we demonstrate the plotting script step-by-step

1. Load necessary Python modules

import pygmt pygmt.config(FONT="16p", IO_SEGMENT_MARKER="<<<") import os from pytomoatt.model import ATTModel from pytomoatt.data import ATTData import numpy as np import sys sys.path.append('../utils') import functions_for_data as ffd

2. Read models

We read the initial and final models.

# read model files Ngrid = [121,121,121] data_file = '2_models/model_init_N%d_%d_%d.h5'%(Ngrid[0],Ngrid[1],Ngrid[2]) par_file = '3_input_params/input_params_real.yaml' model = ATTModel.read(data_file, par_file) init_model = model.to_xarray() data_file = 'OUTPUT_FILES/OUTPUT_FILES_real/final_model.h5' model = ATTModel.read(data_file, par_file) inv_model = model.to_xarray()

3. Read earthquake and station locations

ev, st = ffd.read_src_rec_file('1_src_rec_files/src_rec_file.dat') # earthquake location ev_lon, ev_lat, ev_dep , _ = ffd.data_lon_lat_dep_wt_ev(ev) # station location st_lon, st_lat, _, _ = ffd.data_lon_lat_ele_wt_st(ev,st)

4. Load topography

# load topography region = [97,106,12,21] grid_topo = pygmt.datasets.load_earth_relief(resolution="01m", region=region) grid_gra = pygmt.grdgradient(grid = grid_topo, azimuth = 0) # %% def line_read(file): doc=open(file,'r') file = doc.readlines() doc.close() lat = []; lon = []; for info in file: tmp = info.split() lon.append(float(tmp[0])) lat.append(float(tmp[1])) return((lat,lon))

5. Plot the map in the top left panel.

fig = pygmt.Figure() try: os.mkdir("img") except: pass # ------------------ Sub fig 1. topography ------------------ region = [97,106,12,21] projection = "B101.5/16.5/12/21/10c" frame = ["xa2+lLongitude", "ya2+lLatitude", "nSWe"] spacing = [0.1, 0.1] # topography pygmt.makecpt(cmap="globe", series=[-4000,4000], background = True) fig.grdimage(grid=grid_topo, shading = grid_gra, projection=projection, frame=frame,region=region) # station fig.plot(x = st_lon, y = st_lat, style = "t0.4c", fill = "blue", pen = "1p,white", label = "Station") # tectonic setting (lat,lon) = line_read('tectonics/Khorat_new.txt') # Khorat Plateau fig.plot(x = lon, y = lat, pen = "1p,black") fig.text(text = "Khorat", x = 103.5, y = 17.5, font = "15p,Helvetica-Bold,black", angle = 0) fig.text(text = "Plateau", x = 103.5, y = 16.5, font = "15p,Helvetica-Bold,black", angle = 0) (lat,lon) = line_read('tectonics/WangChaoFault.txt') # Wang-Chao Fault fig.plot(x = lon, y = lat, pen = "1p,black,-") fig.text(text = "WCF", x = 100, y = 16, font = "20p,Helvetica-Bold,white=1p", angle = 315) (lat,lon) = line_read('tectonics/3PagodasFault.txt') # Three Pagodas Fault fig.plot(x = lon, y = lat, pen = "1p,black,-") fig.text(text = "TPF", x = 98.5, y = 14.5, font = "20p,Helvetica-Bold,white=1p", angle = 315) (lat,lon) = line_read('tectonics/DBPF.txt') # Dien Bien Phu Fault fig.plot(x = lon, y = lat, pen = "1p,black,-") fig.text(text = "DBPF", x = 102, y = 19.5, font = "20p,Helvetica-Bold,white=1p", angle = 55) (lat,lon) = line_read('tectonics/SongMaSuture.txt') # Song Ma Suture fig.plot(x = lon, y = lat, pen = "1p,black,-") fig.text(text = "Shan-Thai", x = 99, y = 20, font = "18p,Helvetica-Bold,black=0.5p,white", angle = 0) fig.text(text = "Block", x = 99, y = 19.3, font = "18p,Helvetica-Bold,black=0.5p,white", angle = 0) fig.text(text = "Indochina Block", x = 103.5, y = 15, font = "18p,Helvetica-Bold,black=0.5p,white", angle = 315) fig.shift_origin(xshift= 1, yshift=-1.5) fig.colorbar(frame = ["a%f"%(4000),"y+lElevation (m)"], position="+w4c/0.3c+h") fig.shift_origin(xshift=-1, yshift=+1.5) fig.shift_origin(xshift=0, yshift=-13)

6. Plot earthquake distributions in the bottom left panel

# ------------------ Sub fig 2. earthquakes ------------------ region = "g" projection = "E101/16/90/10c" # centerlon/centerlat/distnace_range/fig_size frame = ["ya180"] spacing = [0.1, 5] fig.basemap(region=region, projection=projection, frame=frame) fig.coast(region=region, projection=projection, frame=frame, water="white", land="gray", A=10000) fig.plot(x=101.5, y=16.5, pen="1p,black,-", style="E-60d") fig.plot(x=101.5, y=16.5, pen="1p,black,-", style="E-120d") fig.plot(x=101.5, y=16.5, pen="1p,black,-", style="E-180d") fig.text(x = [101.5, 101.5, 101.5], y = [-8.0, -38.0, -68], text = ['30', '60', '90'], font="13p") fig.plot(x=[97,97,106,106,97], y=[11,21,21,11,11], pen="1p,red") pygmt.makecpt(cmap="jet", series=[0, 100], background=True) fig.plot(x = ev_lon, y = ev_lat, size = [0.4]*len(ev_lon), fill = ev_dep, style = "a", cmap = True, pen = "0.5p,white") fig.shift_origin(xshift= 1, yshift=-1) fig.colorbar(frame = ["a%f"%(50),"y+lFocal depth (km)"], position="+w4c/0.3c+h") fig.shift_origin(xshift=-1, yshift=+1) fig.shift_origin(xshift= 13, yshift= 13)

7. Plot velocity perturbation profiles

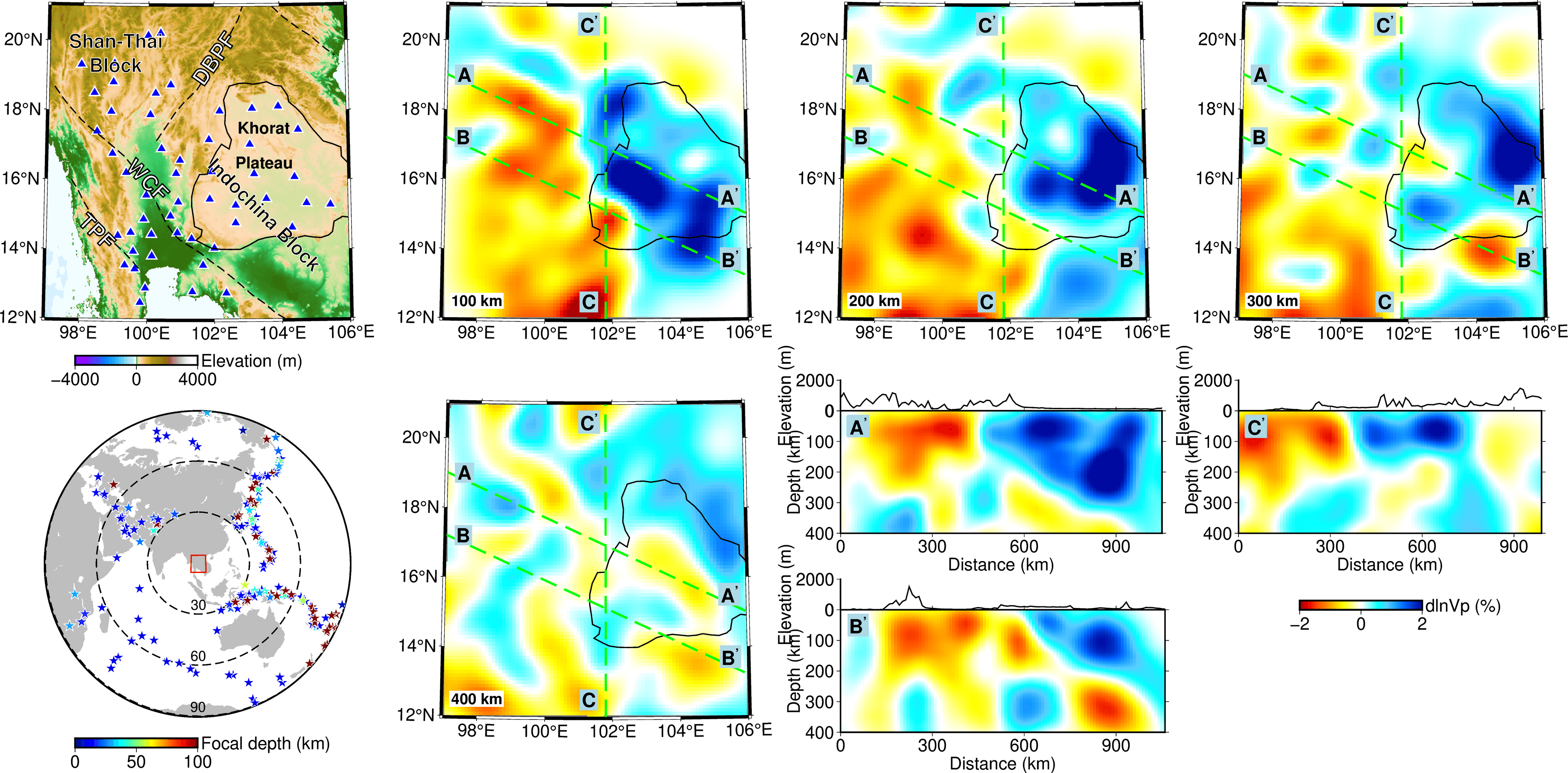

We illustrate the tomographic images via:

  • Four horizontla profiles at 100 km, 200 km, 300 km, and 400 km depth;
  • Three vertical profiles AA’, BB’, and CC’.
# ------------------ Sub fig 3. model ------------------ # ------------------ Sub fig 3. depth and vertical profile ------------------ region = [97,106,12,21] projection = "B101.5/16.5/12/21/10c" frame = ["xa2+lLongitude", "ya2+lLatitude", "nSWe"] spacing = [0.1, 0.1] depth_list = [100,200,300,400] start_list = [ [97, 19], [97, 17.2], [101.8, 12] ] end_list = [ [106, 15], [106, 13.2], [101.8, 21] ] # depth profiles for idepth, depth in enumerate(depth_list): # read models vel_init = init_model.interp_dep(depth, field='vel') vel_inv = inv_model.interp_dep(depth, field='vel') if idepth == 3: fig.shift_origin(xshift=-39, yshift=-13) pygmt.makecpt(cmap="../utils/svel13_chen.cpt", series=[-2, 2], background=True) x = vel_inv[:,0]; y = vel_inv[:,1]; value = (vel_inv[:,2] - vel_init[:,2])/vel_init[:,2]*100 grid = pygmt.surface(x=x, y=y, z=value, spacing=spacing,region=region) fig.grdimage(frame=frame,grid = grid,projection=projection, region=region) # nan_transparent may work (lat,lon) = line_read('tectonics/Khorat_new.txt') # Khorat Plateau fig.plot(x = lon, y = lat, pen = "1p,black") # vertical profile location fig.plot(x = [start_list[0][0],end_list[0][0]], y = [start_list[0][1],end_list[0][1],], pen = "2p,green,-") fig.text(text = "A", x = start_list[0][0] + 0.5, y = start_list[0][1], font = "18p,Helvetica-Bold,black", fill = "lightblue", angle = 0) fig.text(text = "A@+'@+", x = end_list[0][0] - 0.5, y = end_list[0][1] + 0.5, font = "18p,Helvetica-Bold,black", fill = "lightblue", angle = 0) fig.plot(x = [start_list[1][0],end_list[1][0]], y = [start_list[1][1],end_list[1][1],], pen = "2p,green,-") fig.text(text = "B", x = start_list[1][0] + 0.5, y = start_list[1][1], font = "18p,Helvetica-Bold,black", fill = "lightblue", angle = 0) fig.text(text = "B@+'@+", x = end_list[1][0] - 0.5, y = end_list[1][1] + 0.5, font = "18p,Helvetica-Bold,black", fill = "lightblue", angle = 0) fig.plot(x = [start_list[2][0],end_list[2][0]], y = [start_list[2][1],end_list[2][1],], pen = "2p,green,-") fig.text(text = "C", x = start_list[2][0] - 0.5, y = start_list[2][1] + 0.5, font = "18p,Helvetica-Bold,black", fill = "lightblue", angle = 0) fig.text(text = "C@+'@+", x = end_list[2][0] - 0.5, y = end_list[2][1] - 0.5, font = "18p,Helvetica-Bold,black", fill = "lightblue", angle = 0) # depth label fig.text(text="%d km"%(depth), x = 98 , y = 12.5, font = "14p,Helvetica-Bold,black", fill = "white") fig.shift_origin(xshift=13) fig.shift_origin(yshift=6) # vertical profiles for iprof in range(len(start_list)): # generate topography data Npoints = 100 point_x = np.linspace(start_list[iprof][0],end_list[iprof][0],Npoints) point_y = np.linspace(start_list[iprof][1],end_list[iprof][1],Npoints) points = np.hstack((point_x.reshape(-1,1),point_y.reshape(-1,1))) topo = np.array(pygmt.grdtrack(points=points, grid=grid_topo)[2]) topo_dis = [0] for ip in range(1, Npoints): dis = ffd.cal_dis(point_y[0], point_x[0], point_y[ip], point_x[ip]) topo_dis.append(dis) topo_dis = np.array(topo_dis) # read models vel_init_sec = init_model.interp_sec(start_list[iprof], end_list[iprof], field='vel', val=10) vel_inv_sec = inv_model.interp_sec(start_list[iprof], end_list[iprof], field='vel', val=10) # plot topography max_dis = np.max(vel_init_sec[:,2]) region = [0,max_dis,0,2000] projection = "X%f/1c"%(max_dis/400*4) frame = ["ya2000+lElevation (m)", "sW"] fig.shift_origin(yshift=4) fig.basemap(region=region, projection=projection, frame=frame) fig.plot(x = topo_dis, y = topo, pen = "1p,black", frame = frame, projection = projection, region = region) fig.shift_origin(yshift=-4) # plot model region = [0,max_dis,0,400] projection = "X%f/-4c"%(max_dis/400*4) frame = ["xa300+lDistance (km)", "ya100+lDepth (km)", "nSWe"] spacing = [10, 5] x_sec = vel_inv_sec[:,2]; y_sec = vel_inv_sec[:,3]; value_sec = (vel_inv_sec[:,4] - vel_init_sec[:,4])/vel_init_sec[:,4]*100 grid = pygmt.surface(x=x_sec, y=y_sec, z=value_sec, spacing=spacing,region=region) fig.grdimage(frame=frame,grid = grid,projection=projection, region=region) # nan_transparent may work label_list = ['A', 'B', 'C'] fig.text(text = "%s"%(label_list[iprof]), x = 50, y = 50 , font = "18p,Helvetica-Bold,black", fill = "lightblue", angle = 0) fig.text(text = "%s@+'@+"%(label_list[iprof]), x = np.max(x) - 50, y = 50, font = "18p,Helvetica-Bold,black", fill = "lightblue", angle = 0) if (iprof == 0): fig.shift_origin(xshift=0, yshift=-6.5) elif (iprof == 1): fig.shift_origin(xshift=13, yshift=6.5) fig.shift_origin(xshift= 2, yshift=-2.5) fig.colorbar(frame = ["a%f"%(2),"y+ldlnVp (%)"], position="+w4c/0.3c+h") fig.shift_origin(xshift=-2, yshift=+2.5) fig.show() fig.savefig("img/imaging_result.png")
