Result visualization

Make sure the Python module Pygmt is loaded.

This part plot the output files for result visualization. Users can directly run the following codes to plot the results automatically.


python plot_output.py

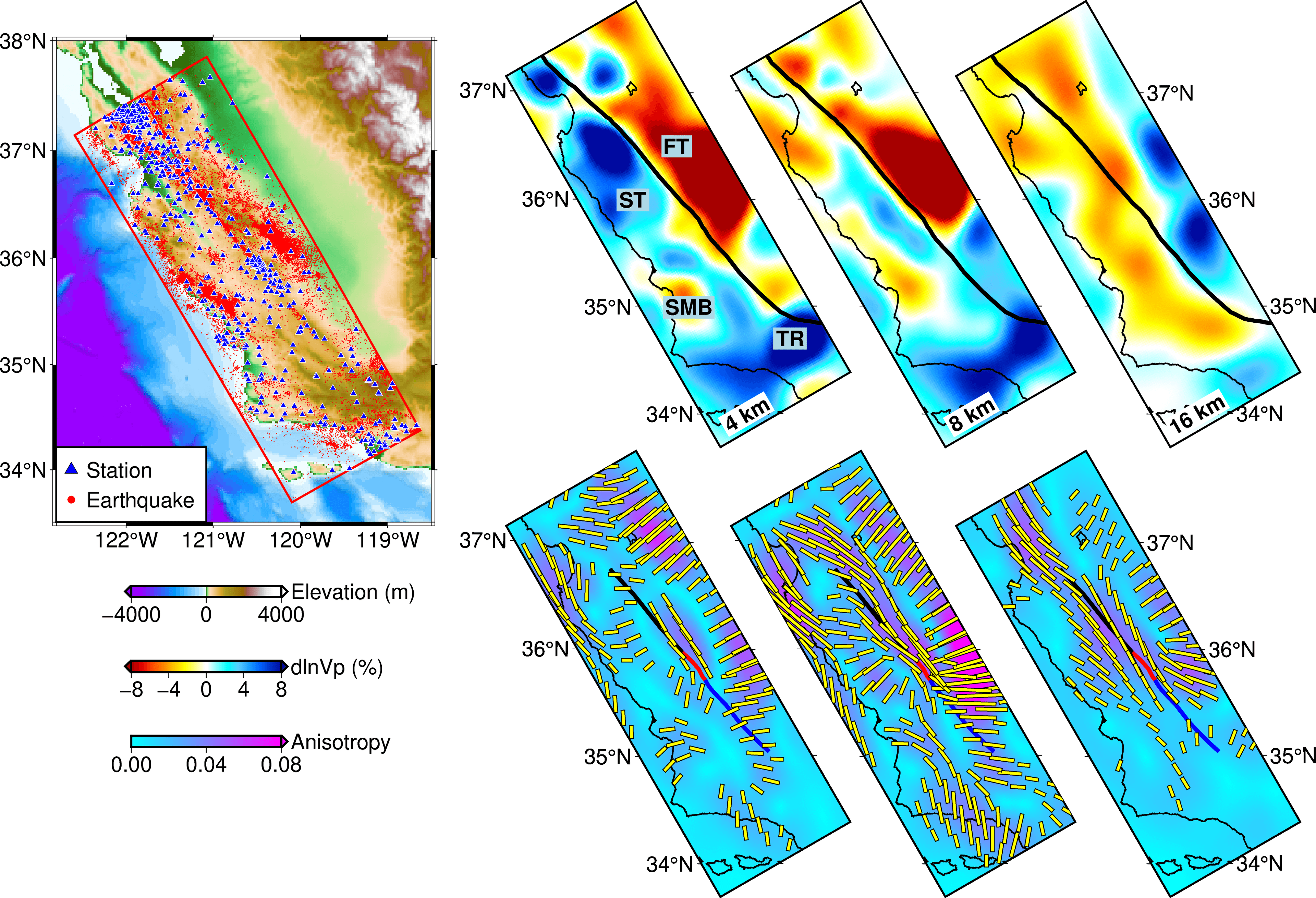

Figures are output as img/imaging_result.png

Here we demonstrate the plotting script step-by-step

1. Load necessary Python modules


import pygmt
pygmt.config(FONT="16p", IO_SEGMENT_MARKER="<<<")
import os

from pytomoatt.model import ATTModel
from pytomoatt.data import ATTData
from pytomoatt.src_rec import SrcRec
import numpy as np

import sys
sys.path.append('../utils')
import functions_for_data as ffd

2. Read models

We read the initial and final models.


# read model files

Ngrid = [51,89,33]
data_file = '2_models/model_init_N%d_%d_%d.h5'%(Ngrid[0],Ngrid[1],Ngrid[2])
par_file = '3_input_params/input_params_real.yaml'
model = ATTModel.read(data_file, par_file)
initial_model = model.to_xarray()

data_file = 'OUTPUT_FILES/OUTPUT_FILES_real/final_model.h5'
model = ATTModel.read(data_file, par_file)
inv_model = model.to_xarray()

3. Read earthquake and station locations

We extract earthquake and station locations in the DATA file 1_src_rec_files/src_rec_file.dat. Since the factual locations have been rotated for TomoATT calculating, here we rotate they back for visualization.


# read src_rec_file
sr = SrcRec.read("1_src_rec_files/src_rec_file.dat")

# rotate back to original coordinates
central_lat     =   35.6
central_lon     = -120.45
rotation_angle  = -30
sr.rotate(central_lat, central_lon, rotation_angle, reverse=True)

# get the coordinates of the stations and earthquakes
stations = sr.receivers[['stlo','stla','stel']].values.T
earthquakes = sr.sources[['evlo','evla','evdp']].values.T

4. Define the study region


lat1 = -1.8;    lat2 = 2.2;
lon1 = -0.7;    lon2 = 0.7;

lat_lon_rotate = np.array([[lon1,lat1],[lon1,lat2],[lon2,lat2],[lon2,lat1],[lon1,lat1]])
lat_lon = ffd.rtp_rotation_reverse(lat_lon_rotate[:,1],lat_lon_rotate[:,0],central_lat,central_lon,rotation_angle)
studt_lat = lat_lon[0]
studt_lon = lat_lon[1]

5. Load topography


# load topography
region = [-122.8,-118.5,33.5,38]
grid_topo = pygmt.datasets.load_earth_relief(resolution="01m", region=region)
grid_gra = pygmt.grdgradient(grid = grid_topo, azimuth = 0)

def line_read(file):
    doc=open(file,'r')
    file = doc.readlines()
    doc.close()
    lat = []; lon = [];
    for info in file:
        tmp = info.split()
        lon.append(float(tmp[0]))
        lat.append(float(tmp[1]))
    return((lat,lon))

6. Plot the map in the left panel.


fig = pygmt.Figure()
try:
    os.mkdir("img")
except:
    pass

# ------------------ Sub fig 1. topography ------------------
region = [-122.8,-118.5,33.5,38]
frame  = ["xa1","ya1","nSWe"]
projection = "M10c"

# topography
pygmt.makecpt(cmap="globe", series=[-4000,4000], background = True)
fig.grdimage(grid=grid_topo, shading = grid_gra, projection=projection, frame=frame,region=region)
# study region
fig.plot(x = studt_lon, y = studt_lat, pen = "1.5p,red")
# earthquakes
fig.plot(x = earthquakes[0,:], y = earthquakes[1,:], style = "c0.02c", fill = "red",label = "Earthquake")
# stations
fig.plot(x = stations[0,:], y = stations[1,:], style = "t0.2c", fill = "blue", pen = "white", label = "Station")


fig.basemap(region=[0,1,0,1], frame=["wesn+gwhite"], projection="X4c/2c")
fig.plot(x=0.1, y=0.3, style='c0.2c', fill='red')
fig.text(text="Earthquake", x=0.2, y=0.3, font="16p,Helvetica", justify="LM")
fig.plot(x=0.1, y=0.7, style='t0.4c', fill='blue', pen='black')
fig.text(text="Station", x=0.2, y=0.7, font="16p,Helvetica", justify="LM")

7. Plot the colorbar


# ------------------ Sub fig 2. colorbar ------------------
fig.shift_origin(xshift= 2, yshift= -2)

pygmt.makecpt(cmap="globe", series=[-4000,4000], background = True)
fig.colorbar(frame = ["a%f"%(4000),"y+lElevation (m)"], position="+e+w4c/0.3c+h")
fig.shift_origin(yshift=-2)

pygmt.makecpt(cmap="../utils/svel13_chen.cpt", series=[-8, 8], background=True, reverse=False)
fig.colorbar(frame = ["a%f"%(4),"y+ldlnVp (%)"], position="+e+w4c/0.3c+h")
fig.shift_origin(yshift=-2)

pygmt.makecpt(cmap="cool", series=[0, 0.08], background=True, reverse=False)
fig.colorbar(frame = ["a%f"%(0.04),"y+lAnisotropy"], position="+ef+w4c/0.3c+h")

8. Plot velocity perturbation and azimuthal anisotropy

We choose three horizontla profiles at 4 km, 8 km, and 16 km to illustrate the tomographic images.


# ------------------ Sub fig 3. model ------------------
fig.shift_origin(xshift = 10, yshift=8)

region_oblique = [-0.7,0.7,-2.2,1.8]
projection = "OA%s/%s/%s/4c"%(central_lon,central_lat,rotation_angle-90.0)
perspective = "30/90"
spacing = "1m"

depth_list = [4,8,16]

for idepth, depth in enumerate(depth_list):

    # initial model
    vel_init = initial_model.interp_dep(depth, field='vel')

    # output model
    vel_inv = inv_model.interp_dep(depth, field='vel')  # velocity
    epsilon_inv = inv_model.interp_dep(depth, field='epsilon')  # magnitude of anisotropy

    # fast velocity directions
    samp_interval = 3
    ani_thd = 0.015
    length = 20
    width = 0.1

    ani_inv_phi = inv_model.interp_dep(depth, field='phi', samp_interval=samp_interval)
    ani_inv_epsilon = inv_model.interp_dep(depth, field='epsilon', samp_interval=samp_interval)
    ani_inv = np.hstack([ani_inv_phi, ani_inv_epsilon[:,2].reshape(-1, 1)*length, np.ones((ani_inv_epsilon.shape[0],1))*width])   # lon, lat, angle, length, width
    idx = np.where(ani_inv_epsilon[:,2] > ani_thd)
    ani = ani_inv[idx[0],:]

    # --------- plot velocity ------------
    if idepth == 0:
        frame  = ["xa100","ya1","nSwE"]
    elif idepth == len(depth_list)-1:
        frame  = ["xa100","ya1","NsWe"]
    else:
        frame  = ["xa100","ya1","nswe"]

    fig.basemap(region=region_oblique, frame=frame, projection=projection, perspective=perspective)
    pygmt.makecpt(cmap="../utils/svel13_chen.cpt", series=[-8, 8], background=True, reverse=False)

    x = vel_init[:,0]; y = vel_init[:,1]; value = (vel_inv[:,2] - vel_init[:,2])/vel_init[:,2] * 100
    y,x = ffd.rtp_rotation_reverse(y,x,central_lat,central_lon,rotation_angle)
    grid = pygmt.surface(x=x, y=y, z=value, spacing=spacing,region=region)
    fig.grdimage(frame=frame,grid = grid,projection=projection, region=region_oblique,perspective=perspective) # nan_transparent may work

    # tectonic setting
    fig.coast(region=region_oblique, frame=frame, projection=projection, perspective=perspective, shorelines="1p,black")    # coastlines
    (SAFy,SAFx) = line_read("tectonics/SAF")
    fig.plot(x = SAFx, y = SAFy, pen = '3.0p,black', perspective = perspective) # SAF
    if idepth == 0:
        fig.text(text = "SMB", x = -120.45 , y = 35.0, font = "16p,Helvetica-Bold,black", angle = 150, fill = "lightblue", perspective = perspective)   # SMB
        fig.text(text = "FT", x = -120.6 , y = 36.50, font = "16p,Helvetica-Bold,black", angle = 150, fill = "lightblue", perspective = perspective)    # Franciscan terrane
        fig.text(text = "ST", x = -121.1 , y = 36.0, font = "16p,Helvetica-Bold,black", angle = 150, fill = "lightblue", perspective = perspective) # Salinian terrane
        fig.text(text = "TR", x = -119.30 , y = 34.70, font = "16p,Helvetica-Bold,black", angle = 150, fill = "lightblue", perspective = perspective)     # Coast Ranges

    # depth label
    fig.text(text="%d km"%(depth), x = -119.8 , y = 34.0, font = "16p,Helvetica-Bold,black", angle = 180, fill = "white", perspective = perspective)     # Coast Ranges


    # --------- plot anisotropy ------------
    fig.shift_origin(yshift=-12)

    fig.basemap(region=region_oblique, frame=frame, projection=projection, perspective=perspective)
    pygmt.makecpt(cmap="cool", series=[0, 0.08], background=True)
    value = epsilon_inv[:,2]
    grid = pygmt.surface(x=x, y=y, z=value, spacing=spacing,region=region)
    fig.grdimage(frame=frame,grid = grid,projection=projection, region=region_oblique,perspective=perspective) # nan_transparent may work

    # tectonic setting
    fig.coast(region=region_oblique, frame=frame, projection=projection, perspective=perspective, shorelines="1p,black")    # coastlines
    (line_y,line_x) = line_read("tectonics/SAF_creeping")
    fig.plot(x = line_x, y = line_y, pen = '3.0p,black',perspective = perspective)
    (line_y,line_x) = line_read("tectonics/SAF_transition")
    fig.plot(x = line_x, y = line_y, pen = '3.0p,red',perspective = perspective)
    (line_y,line_x) = line_read("tectonics/SAF_locked")
    fig.plot(x = line_x, y = line_y, pen = '3.0p,blue',perspective = perspective)

    # anisotropy
    if len(ani) > 0:
        # rotate back to original coordinates
        x = ani[:,0]; y = ani[:,1]
        y,x = ffd.rtp_rotation_reverse(y,x,central_lat,central_lon,rotation_angle)
        ani[:,0] = x; ani[:,1] = y; # no need to modify the angle, because the porjection angle and rotate angle are the same
        fig.plot(ani, style='j', fill='yellow1', pen='0.5p,black',perspective=perspective)

    fig.shift_origin(xshift=6,yshift=12)

fig.show()

fig.savefig("img/imaging_result.png")
